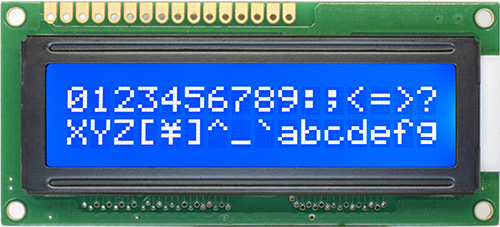

 |  | 16x2 Character LCD module | ||
| Model： |  | WC1602A | ||
| Drive IC： | Aip31066L or Equivalent IC | |||
Dimensions(W*H*T)： | 80*36*14mm / Side backlight module height 10mm | |||
View Area(W*H)： | 64.5*16mm | |||
Character Size(W*H)： | 2.95*5.55mm(large) / 2.95*4.35mm(small) | |||
| Interface Mode： | 8 / 4-bit parallel port （Can be converted to IIC interface through adapter board） / IIC / SPI | |||
| Download Specification Sheet： | LCD Available Types： | STN (Yellow-Green/Blue/Gray), FSTN | ||
| Backlight Color Selection： | Yellow-Green/White/Green/Super-Green/Amber/Orange | |||
 WC1602A V8.1-STBLWHC06.pdf(serial port) | ||||
