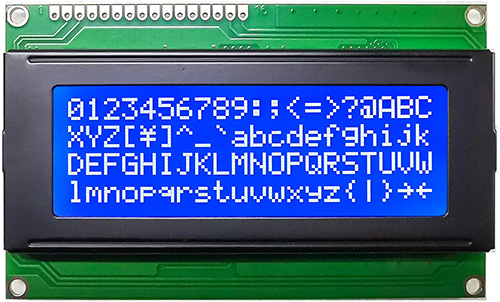

 | 20x4 Character LCD module | ||
| Model： | WC2004A | ||
| Drive IC： | Aip31066L or Equivalent IC | ||
Dimensions(W*H*T)： | 98*60*13.5mm / Side backlight module height 12mm | ||
View Area(W*H)： | 76*25.2mm | ||
Character Size(W*H)： | 2.95*4.75mm | ||
| Interface Mode： | 8 / 4-bit parallel port （Can be converted to IIC interface through adapter board） | ||
| Download Specification Sheet： | LCD Available Types： | STN (Yellow-Green/Blue/Gray), FSTN | |
| Backlight Color Selection： | Yellow-Green/White/Green/Super-Green/Amber/Orange | ||
